EasyClean-Pan®Facade

GRP insulation system with building authority approval

Product description

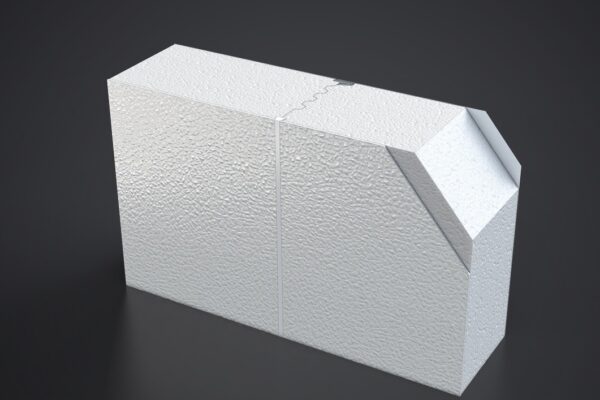

The EasyClean-Pan® facade elements consist of an insulation core coated with a physiologically harmless GRP face sheet on the inside (room side) and a coated steel face sheet on the outer side (weather side). This composite sandwich element can be used to create exterior wall or ceiling components of buildings whose interiors are subject to the highest hygiene requirements when in use. This material mix combined with the hard KL25 joint sealant from ECP enables the unbeatably cost-efficient, single-shell construction of a permanently hygienic building envelope.

Application

EasyClean-Pan®Facade means you can have single-shell exterior walls and ceilings with durable and “jointless” interior surfaces, making them easy to maintain. It is particularly suitable for areas with the highest hygiene classification, which are usually subject to frequent wet cleaning. At the same time, the EasyClean-Pan®Facade meets high thermal insulation requirements.

Examples:

  • Single skin facade/building envelope for food-processing rooms
  • Suspended ceilings
  • Ripening chambers
  • Cleanrooms
  • Wet rooms, wash halls

Element characteristics

General Building inspectorate approval Z-10.4-673
Face sheets: room side
 GRP smooth (with gel coat) thickness 1.5/2.0 mm or
GRP structured (foil sealed) thickness 2.0 mm
outer side colour-coated galvanised sheet steel, thicknesses 0.5/0.6 mm
Insulation core: EPS WLG 035
Element thickness: 60 mm to 260 mm
Dimensions: Construction width 1,190 mm
Element length variable up to max. 12.00 m
Connections: GRP face sheets with “hard” jointing EasyClean system (2-component KL25 joint sealant)
Insulation core with tongue and groove
Steel face sheets with Z-Lock
Fire behaviour: Building material class B2 (DIN 4102-1)
Class E (EN 13501-1)

We would be happy to advise you on how to configure the elements for your individual use.
